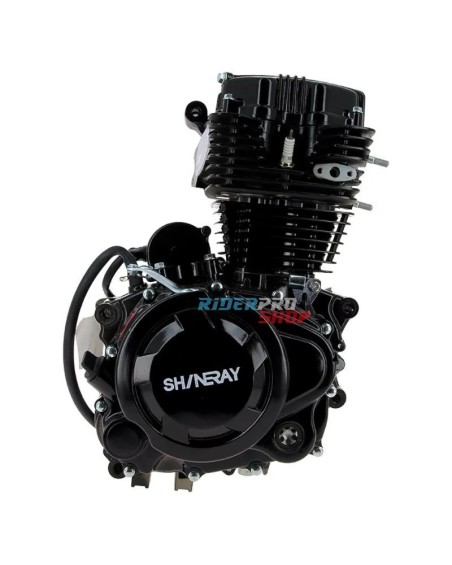

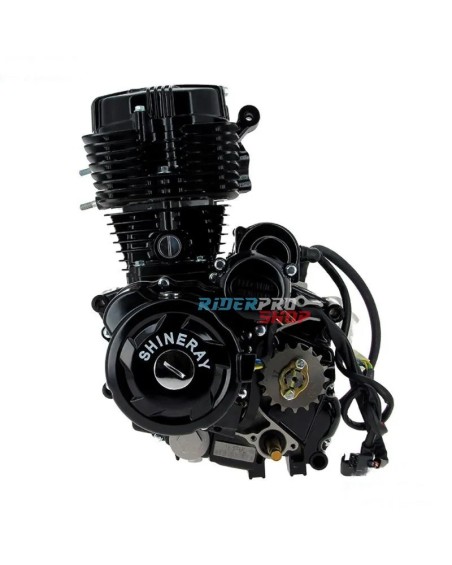

Shineray 200cc Quad Engine STIIE-B 163FML

Name: Shineray 200cc Quad Engine STIIE-B 163FML
Brand: Shineray
SKU: UD-1365
Price: 969.9 EUR
Availability: InStock

Shineray 200cc Engine 163FML – Quad STIIE-B 11.5 kW | XtremRS

Zoom

€969.90

Tax included

Product info

Replace your quad's heart with this Shineray 200cc STIIE-B 163FML engine. This air‑cooled 4‑stroke single delivers 11.5 kW (15.6 hp) and 14 Nm. Electric start, manual clutch. For XY200STIIE and STIIE‑B quads. Supplied complete with spark plug and chain guard. 2‑year XtremRS warranty.

Shineray

Which payment method should I choose?

The payment methods shown above are offered subject to eligibility. Depending on your country, order amount, or payment provider rules, some options may not automatically appear at checkout.

Installment or deferred payment solutions (Klarna, Scalapay, Satispay, etc.) apply their own approval rules and transaction limits.

For higher-value orders, we recommend:

Credit card (Visa, Mastercard, CB) — instant and reliable payment
Bank transfer — ideal for larger amounts
PayPal — buyer protection and generally higher limits

Product details

Shineray 200cc Quad Engine STIIE-B 163FML: reliable power for your quad

Give your Shineray quad a new lease of life with this 200cc STIIE-B 163FML engine. This air‑cooled single‑cylinder 4‑stroke is a direct replacement for XY200STIIE and XY200STIIE‑B models. Producing 11.5 kW (15.6 hp) at 8,000 rpm and 14 Nm of torque, it delivers strong acceleration and a top speed of 70 km/h. Supplied complete with electric starter, Torch D8RTC spark plug and chain guard, ready for professional installation.

Compatibility: Shineray XY200STIIE & STIIE-B quads

This Shineray 200cc engine is purpose‑built for XY200STIIE and XY200STIIE‑B quads. Check the 163FML reference stamped on your old engine to confirm. Contact us with a photo if unsure.

163FML engine technical specifications

Type: single‑cylinder 4‑stroke, air‑cooled
Displacement: 196 cc
Bore x stroke: 63.5 x 62.2 mm
Compression ratio: 9.0:1
Max power: 11.5 kW @ 8,000 rpm
Max torque: 14 Nm @ 6,500 rpm
Lubrication: pressure/splash
Clutch: manual
Ignition: CDI
Start: electric
Transmission: chain, 17‑tooth sprocket, 428 pitch
Top speed: ~70 km/h
Oil: 10W40 or 5W40 (cold) – drained before shipping

1. Which quad models is this engine compatible with?

It is designed for Shineray XY200STIIE and XY200STIIE‑B quads. Check the 163FML reference on your old engine.

2. How much power does it produce?

11.5 kW (15.6 hp) at 8,000 rpm, with 14 Nm of torque. Top speed around 70 km/h.

3. What warranty is offered?

2‑year manufacturer warranty, excluding wear parts and safety equipment.

4. Shipping and delivery?

Free shipping on parts orders over €150. Delivery within 5‑8 working days by appointment.

5. Is the engine supplied with accessories?

Yes, it comes complete with electric starter, Torch D8RTC spark plug and chain/sprocket guard.

6. Do I need to add oil before use?

Yes, the engine is drained before shipping. Fill with 10W40 oil (or 5W40 in very cold weather).

7. Can I install the engine myself?

Installation requires mechanical skills. Professional fitting is strongly recommended.

8. Is it suitable for competition use?

It is designed for standard use. For competition, check regulations and consider specific modifications.

9. How do I maintain this engine?

Follow oil change intervals, check oil level, clean the air filter and inspect the spark plug regularly.

This engine is a replacement component. The complete quad's road compliance must be verified with local authorities. Installation must be performed by a professional. Purchase on XtremRS is reserved for adults. Always wear proper protective gear.

General

Brand Shineray
Reference UD-1365

Features

Engine displacement 200cc
Parts for vehicle quad thermique
